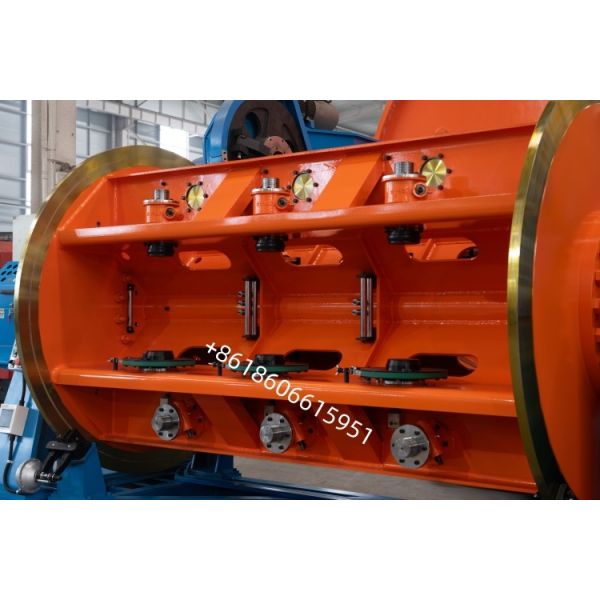

Rigid Stranding Machine with 36 Bobbins, 500 mm Reel Flange, and Multi-Section Cage for High-Speed Wire Stranding

• JLK: Rigid frame (cage) stranding machine series.
• 500: Nominal reel flange diameter of 500 mm​ (PN500).
• 6+12+18: A three-section cage with 6, 12, and 18 bobbins respectively, totaling 36 wires

Specifications may vary slightly by manufacturer.

• Central Pay-off Stand:​ Supports the core wire.
• Rigid Cage Stranding Sections (6+12+18):​ The core component that twists the wires.
• Compacting & Pre-forming Unit:​ Shapes the conductor into round or sector form.
• Meter Counter:​ For length measurement.
• Dual/Double Drum Capstan:​ Provides the pulling force.
• Take-up & Traverse Unit:​ Winds the finished cable onto the reel.
• Drive & Control System:​ Includes PLC, inverters, and safety interlocks

• High Rigidity & Stability:​ Heavy-duty frame and high-precision bearings ensure stable, high-speed operation with low vibration.
• Multi-Section Cage:​ The 6+12+18 configuration is ideal for large-section and complex (e.g., sector) conductors.
• Precise Tension Control:​ Mechanical or pneumatic tensioning ensures uniform wire tension for high-quality, round conductors.
• Efficient Production:​ High line speed and large bobbin capacity significantly boost output.
• Automated Control:​ PLC and touch-screen interface allow easy setting of parameters like line speed and pitch
